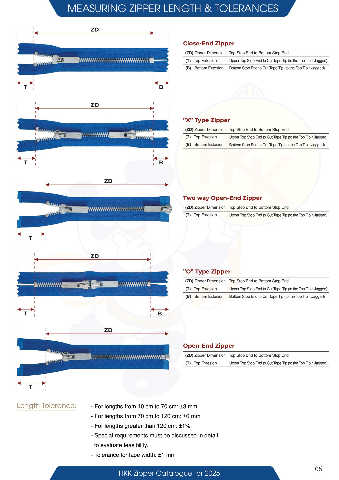

MEASURING ZIPPER LENGTH & TOLERANCES
ZD
Close-End Zipper
(ZD) Zipper Dimension Top Stop End to Bottom Stop End
(T) Top Extesion Upper Top Stop End to Cut Tape Tip (to the Top Tip if Jagged)
(B) Bottom Extesion Bottom Stop End to Cut Tape Tip (to the Top Tip if Jagged)
T B
ZD
”X” Type ZIpper
(ZD) Zipper Dimension Top Stop End to Bottom Stop End
(T) Top Extesion Upper Top Stop End to Cut Tape Tip (to the Top Tip if Jagged)
(B) Bottom Extesion Bottom Stop End to Cut Tape Tip (to the Top Tip if Jagged)
T B
ZD
Two way Open-End Zipper
(ZD) Zipper Dimension Top Stop End to Bottom Stop End
(T) Top Extesion Upper Top Stop End to Cut Tape Tip (to the Top Tip if Jagged)
T
ZD
”O” Type Zipper
(ZD) Zipper Dimension Top Stop End to Bottom Stop End
(T) Top Extesion Upper Top Stop End to Cut Tape Tip (to the Top Tip if Jagged)
(B) Bottom Extesion Bottom Stop End to Cut Tape Tip (to the Top Tip if Jagged)
T B
ZD
Open-End Zipper
(ZD) Zipper Dimension Top Stop End to Bottom Stop End
(T) Top Extesion Upper Top Stop End to Cut Tape Tip (to the Top Tip if Jagged)
T
Length Tolerance: - For lengths from 10 cm to 70 cm: ±3 mm
- For lengths from 70 cm to 120 cm: ±6 mm
- For lengths greater than 120 cm: ±1%
- Special requirements must be discussed in detail
to evaluate feasibility.
- Tolerance for tape width: ±1 mm
